Special Coating
Thermal Spray

Thermal Spray

Thermal Spray & ALD
Characteristics
  • Non-Porous Structural Film
  • Improve Crack and other damage in high-temperature processes.
  • Anodizing Parts
  • Non-Porous Structural FilmExcellent Withstand VoltageOutstanding Heat ResistanceSuperior Plasma Corrosion ResistanceEco-Friendly Construction
  • Process Condition APS ADPS HDPS SPPS (Under Development) ALD
    Atmosphere Atmosphere Atmosphere Controlled
    Atmosphere    		 Vacuum
    Low Pressure
    Initial State

    Solid Powder 10~60um

    Thermal/
    Kinetic Energy

    Solid Powder 10~60um

    Thermal/
    Kinetic Energy

    Higher

    Solid Powder
    in Solvent
    <3um

    Thermal/
    Kinetic Energy

    Atomization,
    Evaporation

    Liquid Precursor

    Plasma Activation

    Thermal/
    Kinetic Energy

    Atomization,
    Evaporation
    Chemical reaction

    Liquid Precursor

    Plasma Activation

    Thermal Energy
    Intermediate State Liquid State Liquid State Liquid State Solid State Vapor State
    Product Solid Film Solid Film Solid Film Solid Film Solid Film

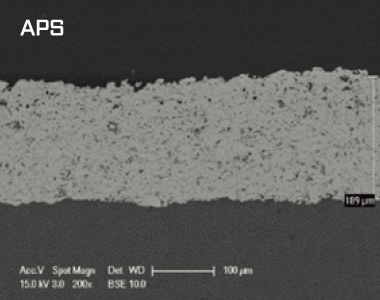

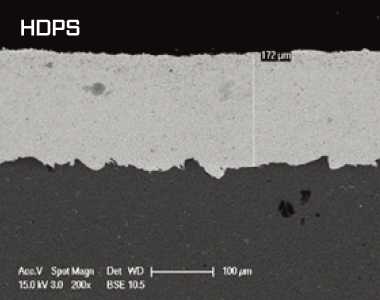

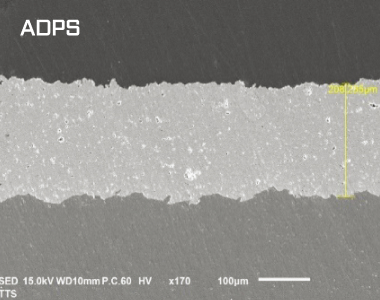

  • Coating Solutions APS AAPS HDPS
    Porosity ≒8% 3~5% ≤1%
    Hardness(Hv) - A1203 600 ~ 800 800 ~ 1,000 1,000 ~ 1,300
    Roughness (Ra) 5 ~ 6 3 ~ 5 1 ~ 2
    Coat Thickness 50um~ 20um~ 1um~
Thermal Spray
Thermal Spray
info
Thermal Spray & ALD
Characteristics
  • Non-Porous Structural Film
  • Improve Crack and other damage in high-temperature processes.
  • Anodizing Parts
  • Non-Porous Structural FilmExcellent Withstand VoltageOutstanding Heat ResistanceSuperior Plasma Corrosion ResistanceEco-Friendly Construction
  • Process Condition APS ADPS HDPS SPPS (Under Development) ALD
    Atmosphere Atmosphere Atmosphere Controlled
    Atmosphere    		 Vacuum
    Low Pressure
    Initial State

    Solid Powder 10~60um

    Thermal/
    Kinetic Energy

    Solid Powder 10~60um

    Thermal/
    Kinetic Energy

    Higher

    Solid Powder
    in Solvent
    <3um

    Thermal/
    Kinetic Energy

    Atomization,
    Evaporation

    Liquid Precursor

    Plasma Activation

    Thermal/
    Kinetic Energy

    Atomization,
    Evaporation
    Chemical reaction

    Liquid Precursor

    Plasma Activation

    Thermal Energy
    Intermediate State Liquid State Liquid State Liquid State Solid State Vapor State
    Product Solid Film Solid Film Solid Film Solid Film Solid Film
  • Coating Solutions APS AAPS HDPS
    Porosity ≒8% 3~5% ≤1%
    Hardness(Hv) - A1203 600 ~ 800 800 ~ 1,000 1,000 ~ 1,300
    Roughness (Ra) 5 ~ 6 3 ~ 5 1 ~ 2
    Coat Thickness 50um~ 20um~ 1um~
