- Ceramic Heater

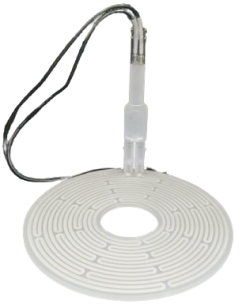

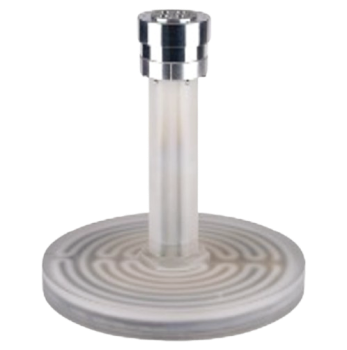

- QUARTZ HEATER
- Excellent high-temperature heating properties
- Despite rapid thermal changes, there is minimal damage due to thermal shock, and excellent heat dissipation is maintained even at high temperatures (maximum operating temperature 1000℃).
- Fast heating rate (up to 100℃/min)
- Due to the excellent thermal properties of quartz materials, thermal deformation and thermal shock are minimized.
- Leak-free construction
- Interfacial diffusion bonding is used to create an integrated product without impurities.
- Multi-zone heating implementation
- It can be customized according to the user's environment by dividing the heater's control areas.
- Long Life
- The heater’s heating wire can be implemented as a graphite annular design, ensuring the product’s long life even with extended use.
-
Specification Max. Using Temp. 1000℃ (In Low Vacuum) Ramping Rate Max. 100℃/min Type Bottom & Substrate Material Quartz Heater element Coil & Yarn Heater Zone 1 or 2 Zone Shaft All-in-one Use Condition ATM & Vacuum
- QUARTZ HEATER
- info
- Excellent high-temperature heating properties
- Despite rapid thermal changes, there is minimal damage due to thermal shock, and excellent heat dissipation is maintained even at high temperatures (maximum operating temperature 1000℃).
- Fast heating rate (up to 100℃/min)
- Due to the excellent thermal properties of quartz materials, thermal deformation and thermal shock are minimized.
- Leak-free construction
- Interfacial diffusion bonding is used to create an integrated product without impurities.
- Multi-zone heating implementation
- It can be customized according to the user's environment by dividing the heater's control areas.
- Long Life
- The heater’s heating wire can be implemented as a graphite annular design, ensuring the product’s long life even with extended use.
-
Specification Max. Using Temp. 1000℃ (In Low Vacuum) Ramping Rate Max. 100℃/min Type Bottom & Substrate Material Quartz Heater element Coil & Yarn Heater Zone 1 or 2 Zone Shaft All-in-one Use Condition ATM & Vacuum
